Front Wheel Drive 4000kg Underground Utility Vehicle WC5E(B) Low Dump Truck

  • 1
  • 2
  • 3

Brand Name : Beijun

Model Number : WC5E(B)

Certification : CE,ISO,TUV

Place of Origin : China

MOQ : 1

Supply Ability : 100 Set/Sets per Month

Delivery Time : 14-30 days

Packaging Details : Customized packaging

Model : WC5E(B)

Overall mass(kg) : 6750

Rated load(kg) : 4000

Overall Dimension L(mm)xW(mm)xH(mm) : 6230*2000*1700

Wheelbase(mm) : 3665

Front wheelbase(mm) : 1457

Rear wheelbase(mm) : 1590

Maximum tractive force(kN) : 52

Contact Now

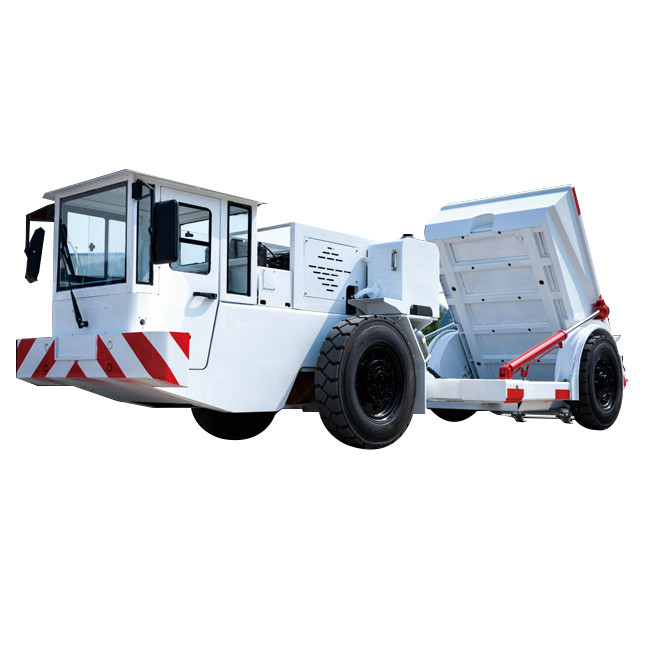

WC5E(B) Low Dump Truck

Designed to meet the latest major international safety standards, including electronic diesel engine safety shutdown systems and roll-over (ROPS) and falling object (FOPS) protection fitted as standard on all units
Increased engine performance with additional 20% torque and 8% power for more productivity

Item Main technical parameters
Model WC5E(B)
Overall mass(kg) 6750
Rated load(kg) 4000
Overall Dimension L(mm)xW(mm)xH(mm) 6230*2000*1700
Wheelbase(mm) 3665
Front wheelbase(mm) 1457
Rear wheelbase(mm) 1590
Minimum ground clearance(mm) 202
Climbing capacity(°) 14°
Running speed of each gear(km/h) Forward I gear 0-7
II gear 0-14
III gear 0-25
IV gear 0-36
Reverse I gear 0-9
Reverse II gear 0-14
Reverse III gear 0-25
Reverse IV gear 0-36
Minimum passing ability radius(mm) Outboard 5700
Inside 4065
Maximum tractive force(kN) 52
Transmission mode Hydraulic transmission
Braking type Working brake Hydraulic Brake Wet Brake
Parking brake Spring brake Hydraulic release Fail-safe
Drive type Front wheel drive

Front Wheel Drive 4000kg Underground Utility Vehicle WC5E(B) Low Dump TruckFront Wheel Drive 4000kg Underground Utility Vehicle WC5E(B) Low Dump TruckFront Wheel Drive 4000kg Underground Utility Vehicle WC5E(B) Low Dump Truck
